Automatic Car Wash

Ephesus Automatic Car Wash System

Automatic Car Washing Machine equipped with a Brush Swing system to effortlessly clean a wide range of vehicles.

Featured Project Cover Image
Featured Project Cover Image
Featured Project Cover Image

Description

Ephesus Automatic Car Washing Machine equipped with a Brush Swing system. It is designed to effortlessly clean a wide range of vehicles, including passenger cars, vans, jeeps, and minibuses, with dimensions of up to 3.00 meters in height and 2.20 meters. This advanced machine features 2 vertical and 1 horizontal brush systems.

The vertical brush system operates seamlessly with a swing mechanism, meticulously designed for various vehicle surfaces, utilizing an independent reciprocating bearing shaft system. For precise washing, the Horizontal Brush incorporates a Digital Power Control Reader alongside a safety roller.

Additionally, this machine boasts the capability to foam vehicles during the washing process. All managed automatically under PLC computer control. Renowned for its user-friendly interface and minimal operating and maintenance costs, it stands as one of our most sought-after models. Its modular design allows for easy integration of optional equipment according to specific preferences.

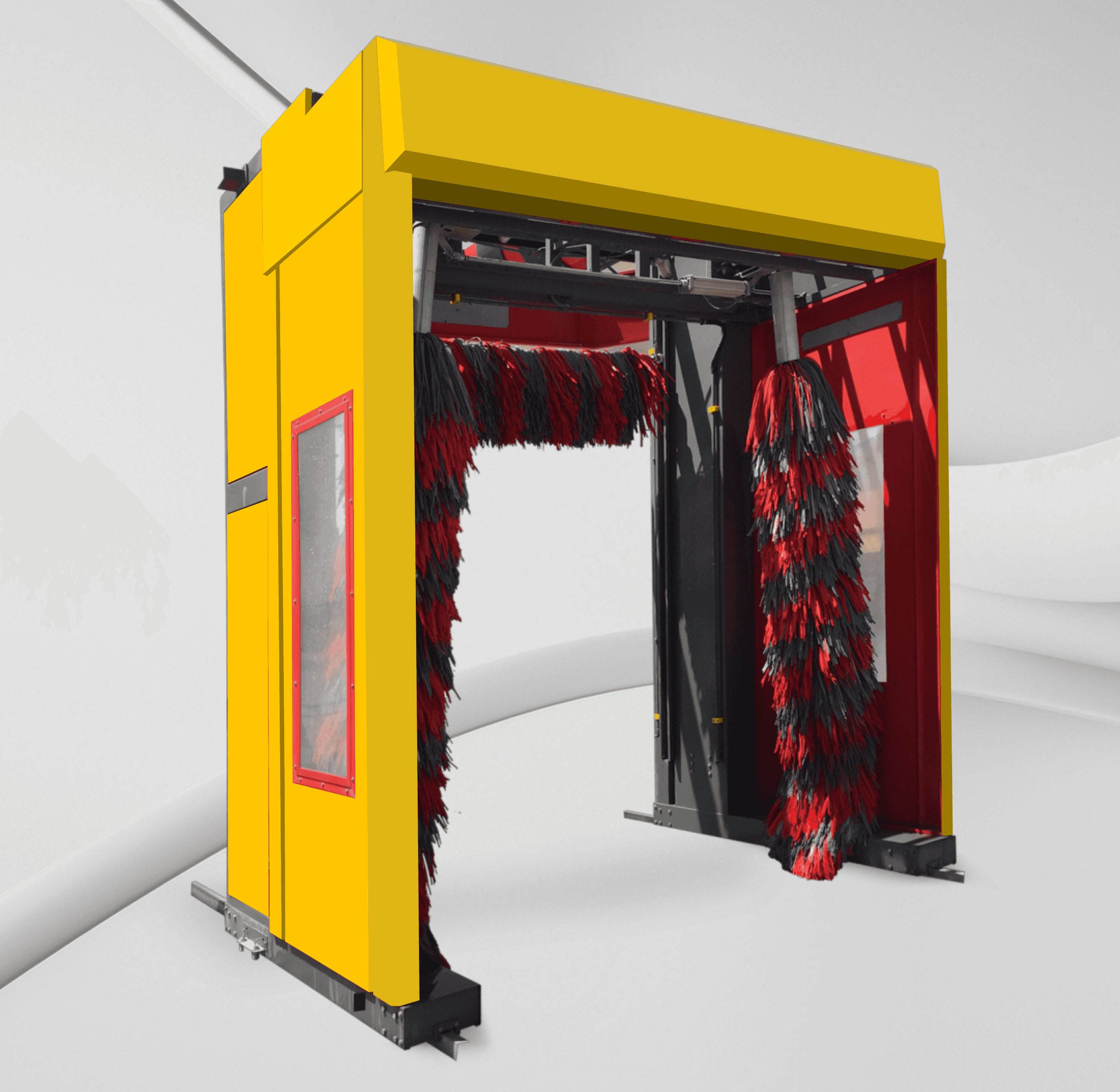

Project Content Image - 1
Project Content Image - 1
Project Content Image - 1

Ephesus Standard Accessories

TECHNICAL SPECS

UNIT

EPHESUS

Max. Machine Width

cm

365

Max. Machine Height

cm

400

Max. Washing Height

cm

300

Max. Washing Width

cm

220

Rail Gauge

cm

300

Rail Lenght

mt

10

Power Installed

kW

3

Voltage / Frequency

V

380 / Hz50

Operation Times / Vehicle

min / vehicle

2-2,5

Water Pressure

bar

3,5

Water Consumption

lt / min

60-80

Air Pressure

bar

6

Air Reguirement

lt / min

56

Electric Consumption

kWh / vehicle

0,15

Shampoo Consumption

gr / vehicle

20-Oct

Brush Unit Vertical / Horizontal

2+1

Project Content Image - 2
Project Content Image - 2
Project Content Image - 2
